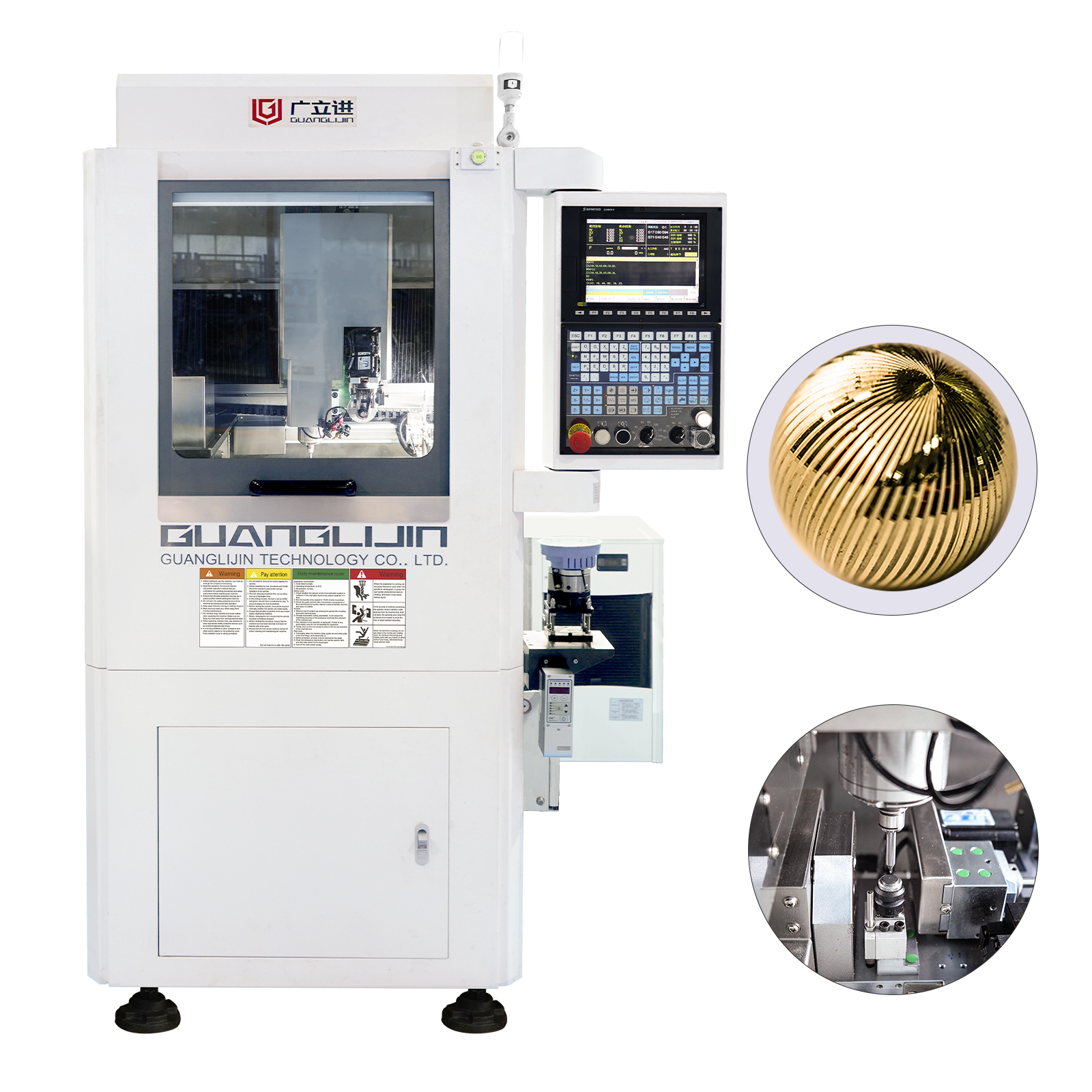

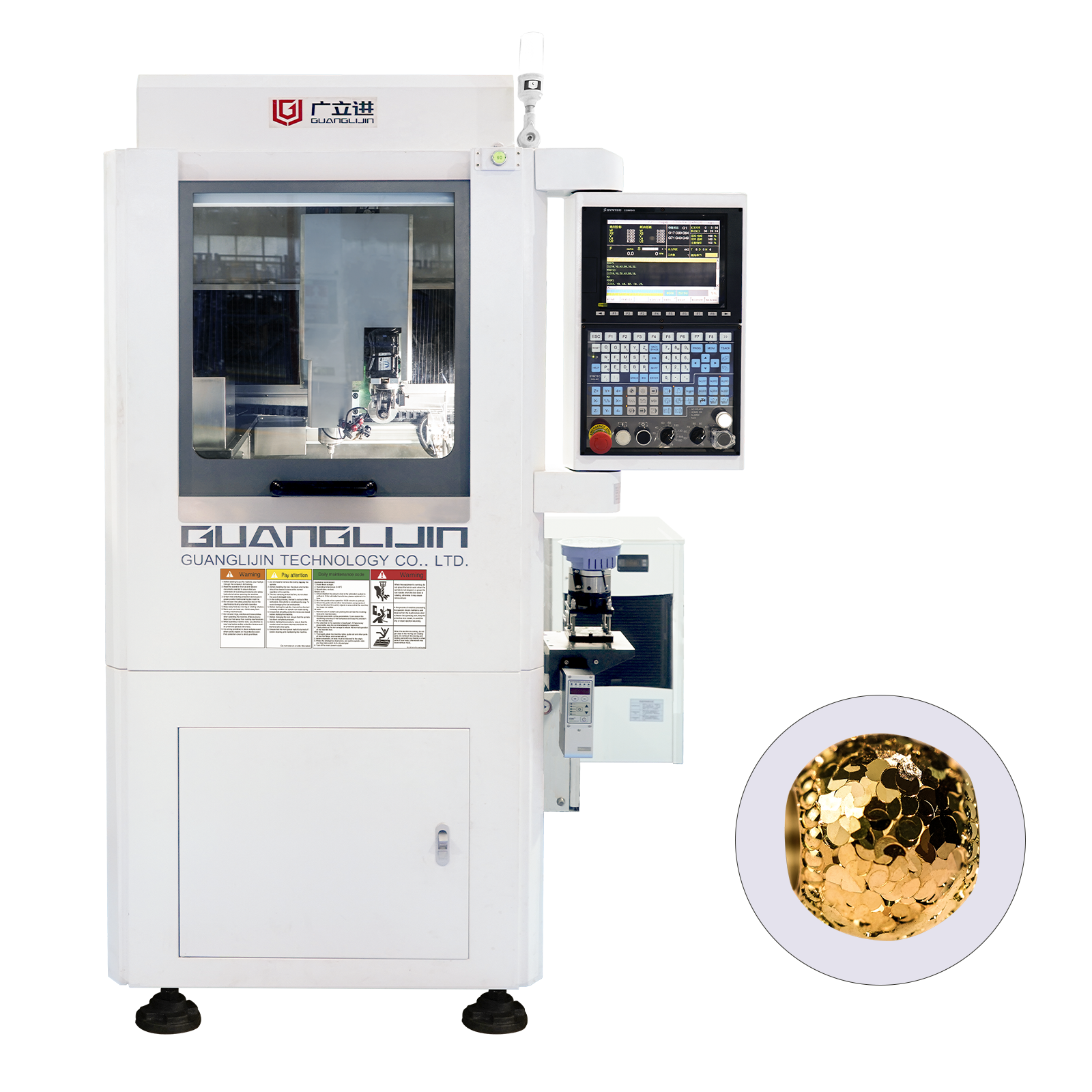

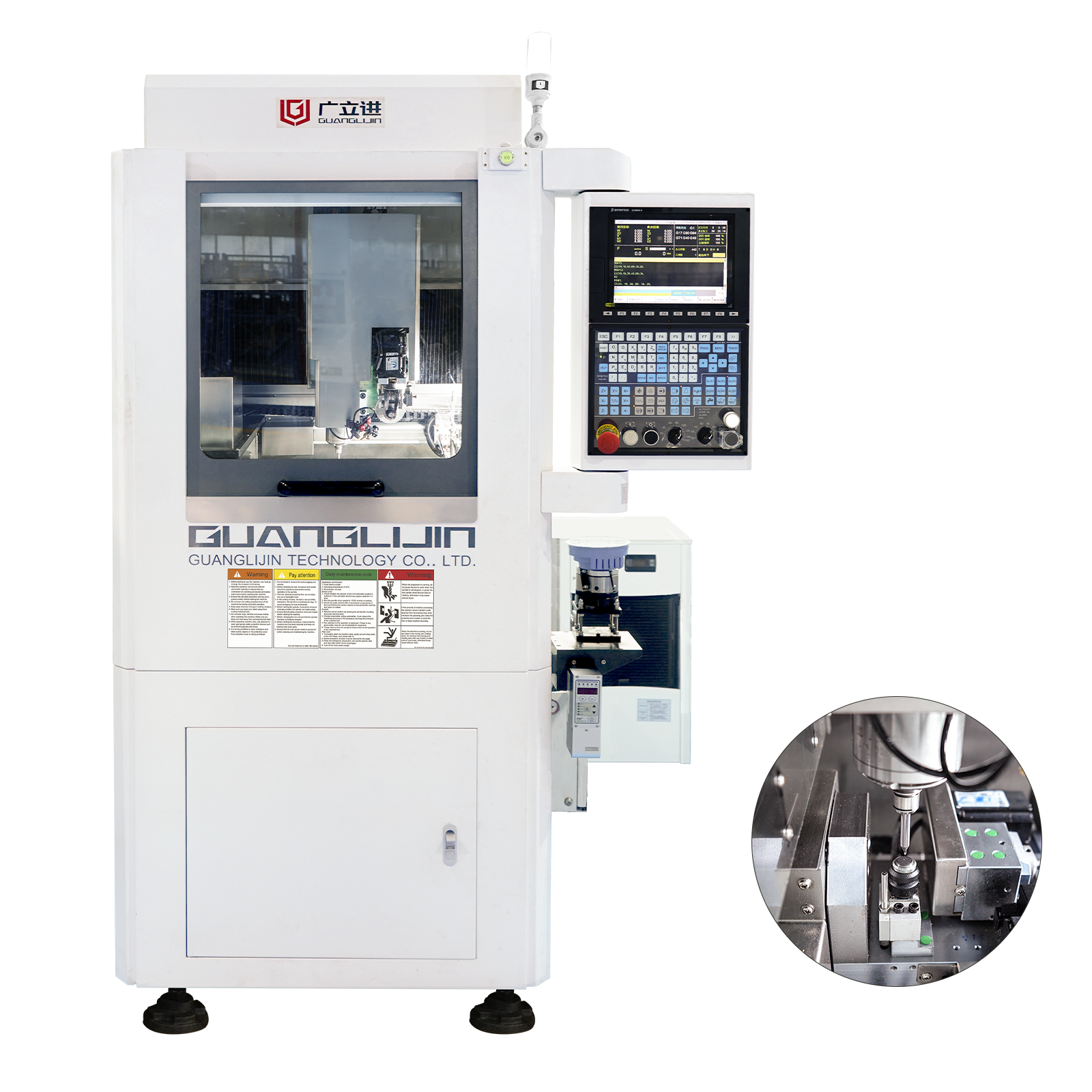

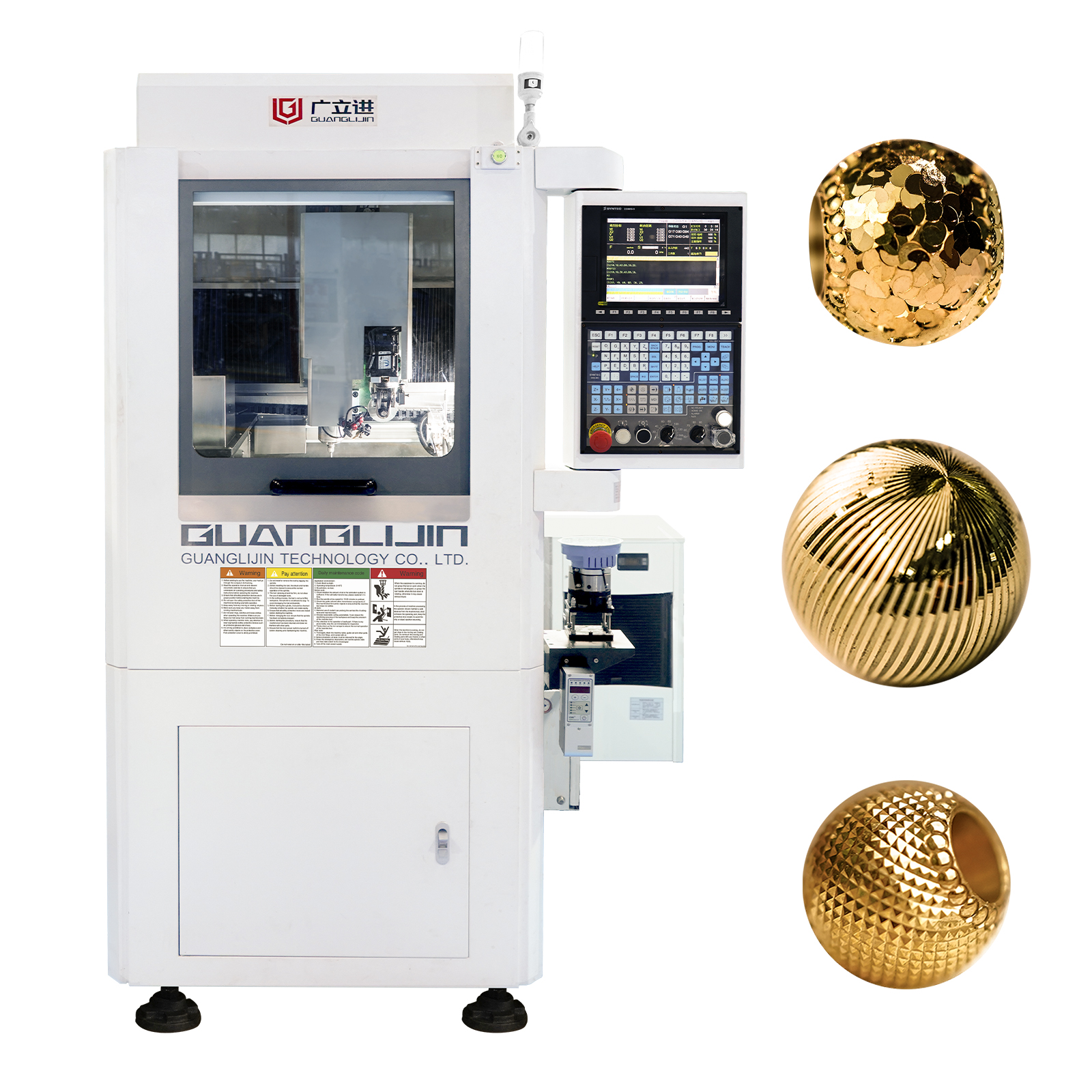

G10-200 bead engraving machine

Highlights

Description

Technical Parameters:

No.	Item	Details
1	B axis reducer	Japan	Rated torque 15.3n.m, Instaneous max. torque 53.5n.m, Rated speed 250rpm, max. speed 500 rpm
2	W axis spindle	servo motor	max. 10000rpm, max. dia. of round cutter: 70mm
3	Transmission components	Rexroth, Germany	Repeatability: +/-0.003mm
4	Operation	SYNTEC system	220MB-10.4 inch screen operation box, max. extending 500mm on width at left side
5	Servo motor		50w/400w/750w
6	Spindle	Air-operated	2.5kw, max. speed 60000 rpm water cooling with flow-alarm
7	Tool magazine		Auto calibration: 0.002mm Up to 8 tools
8	Bead rolling	servo-drive	250 rpm to 500 rpm
9	Loading&unloading	servo-motor	vacuum chuck
10	Tool holder	Penumatic driving	ISO 10
11	Collet chuck		ER-11
12	Lubrication		Timing automatic oiling
13	Working flatness		+/-0.015mm
14	X axis stroke		180mm
15	Y axis stroke		50mm
16	Z axis stroke		130mm
17	Body weight		1.0 tons
18	Front door	Penumatic driving	extending 600mm upward when opened
19	Layout (mm)	main body	840 width970 depth2100 height
20	Power requirement		220v/50hz

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
