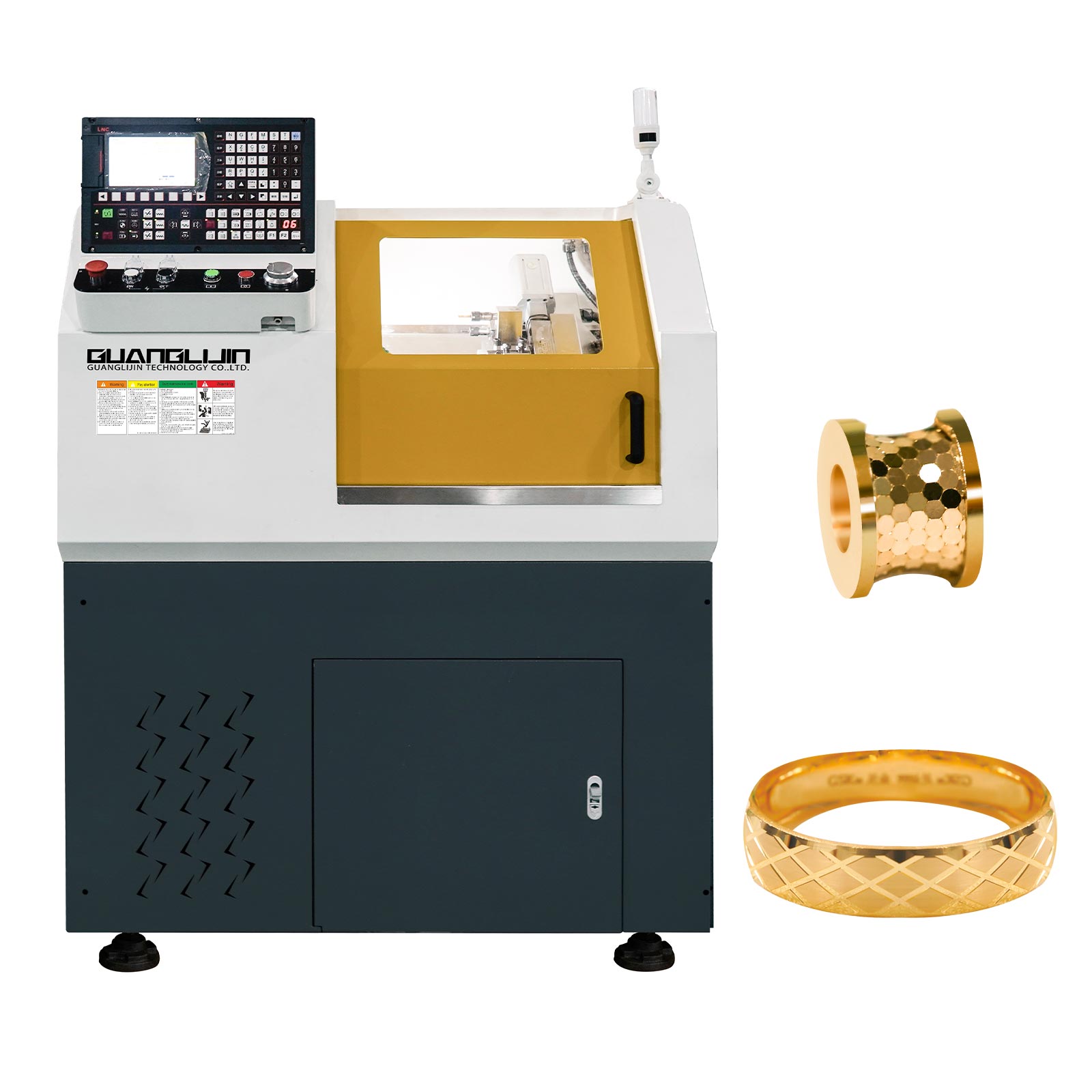

G2-200 Horizontal lathe two-axis machine

Highlights

Description

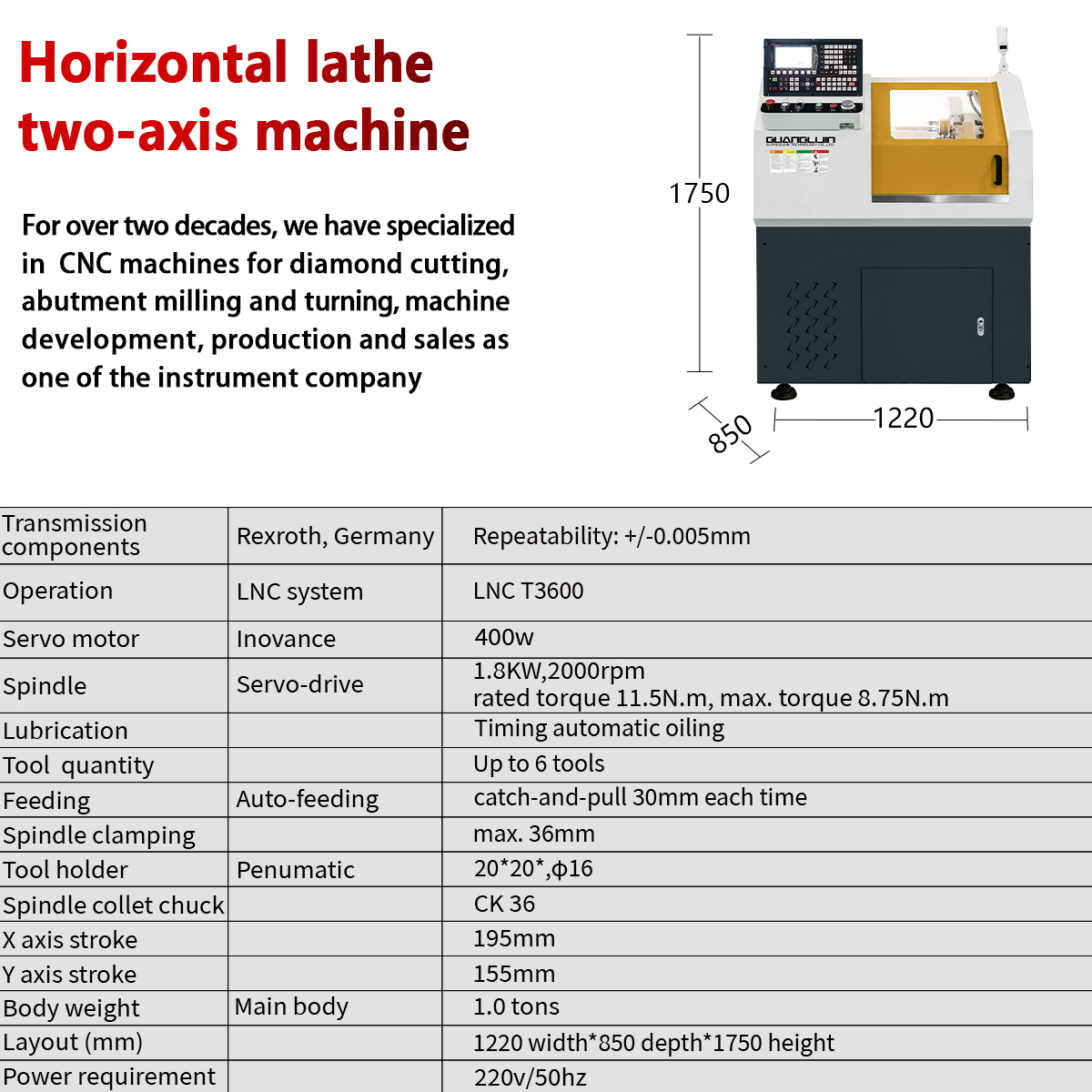

Technical Parameters:

G2-200 Lathe
No.	Item	Details
1	Transmission components	Rexroth, Germany	Repeatability: +/-0.005mm
2	Operation	LNC system	LNC T3600
3	Servo motor	Innovance	400W
4	Spindle	servo-drive	1.8KW, 2000rpm rated torque 11.5N.m, max torque 8.75 N.m
5	Lubrication		Timing automatic oiling
6	Tool quantity		Up to 6 tools
7	Feeding	auto-feeding	catch-and-pull 30mm each time
8	Spindle clamping		max. 45mm
9	Tool holder		10*10, φ16
10	Spindle collet chuck	penumatic	CK36
11	X axis stroke		195mm
12	Y axis stroke		155mm
13	Layout (mm)	main body	85011701750
14	Power requirement		220v/50hz
15	Body weight		1.0 tons

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
