Product Features:

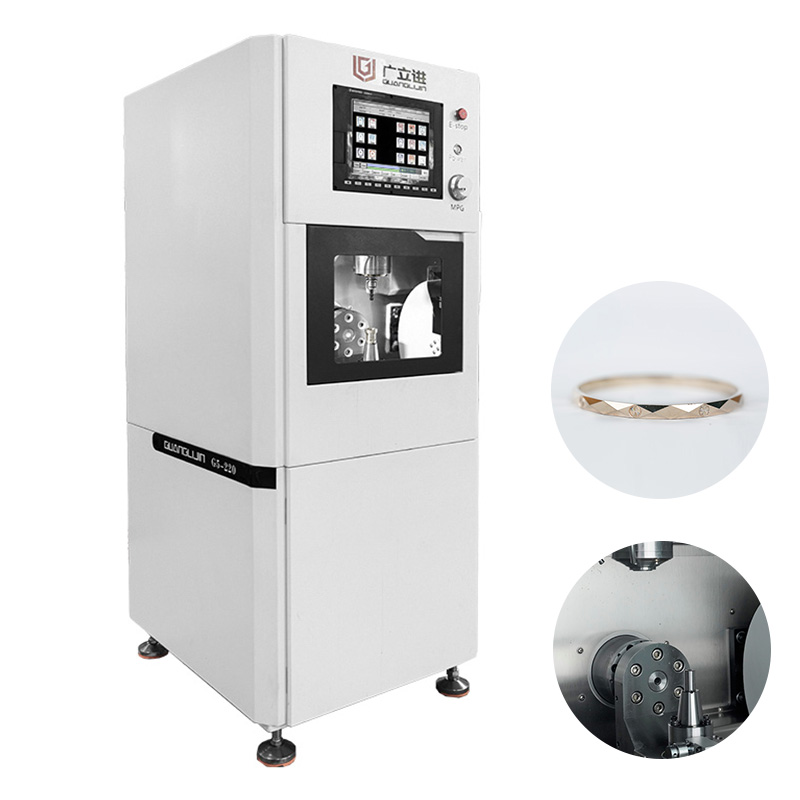

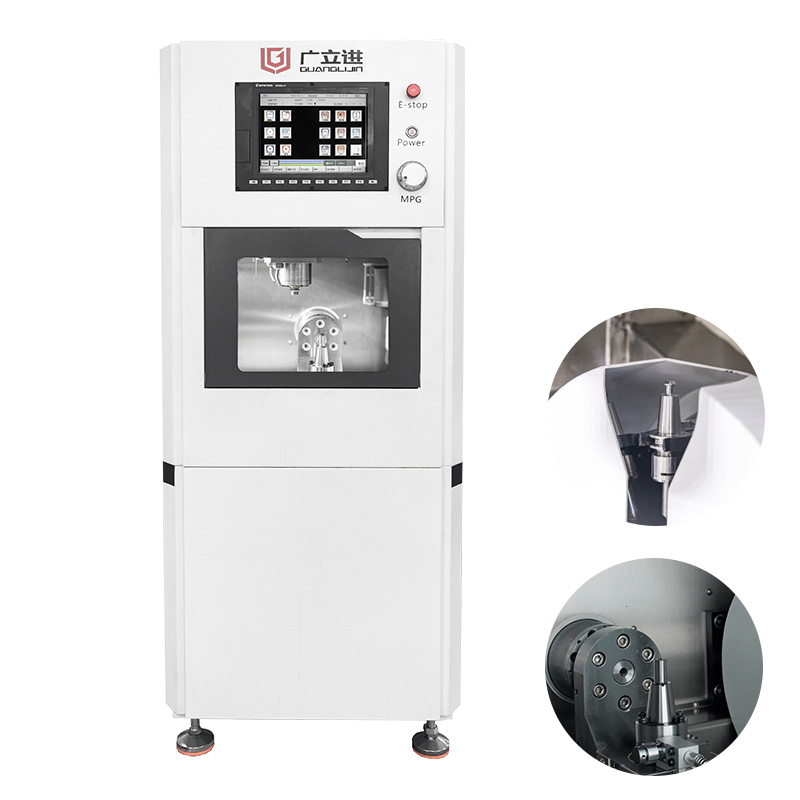

This high-performance jewelry manufacturing machine is designed for precision machining of small, intricate parts, offering exceptional accuracy, stability, and efficiency.

Key Features

1. Industry-Specific Design

   • Optimized for precious metal processing with material utilization rate exceeding 99.95%

   • Ideal for precision machining of gold, platinum, and other precious metals

2. Outstanding Mechanical Performance

   • Monolithic cast iron construction ensures vibration damping and long-term accuracy

   • 4th/5th axes equipped with Japanese precision reducers (±0.003mm positioning accuracy)

   • German Rexroth ball screws and linear guides for superior motion control

3. Intelligent Machining System

   • Lenake intelligent control system

   • 10.4" industrial touchscreen for user-friendly operation

   • Fully enclosed servo-driven tool magazine (12 stations) with 5-6 second tool change

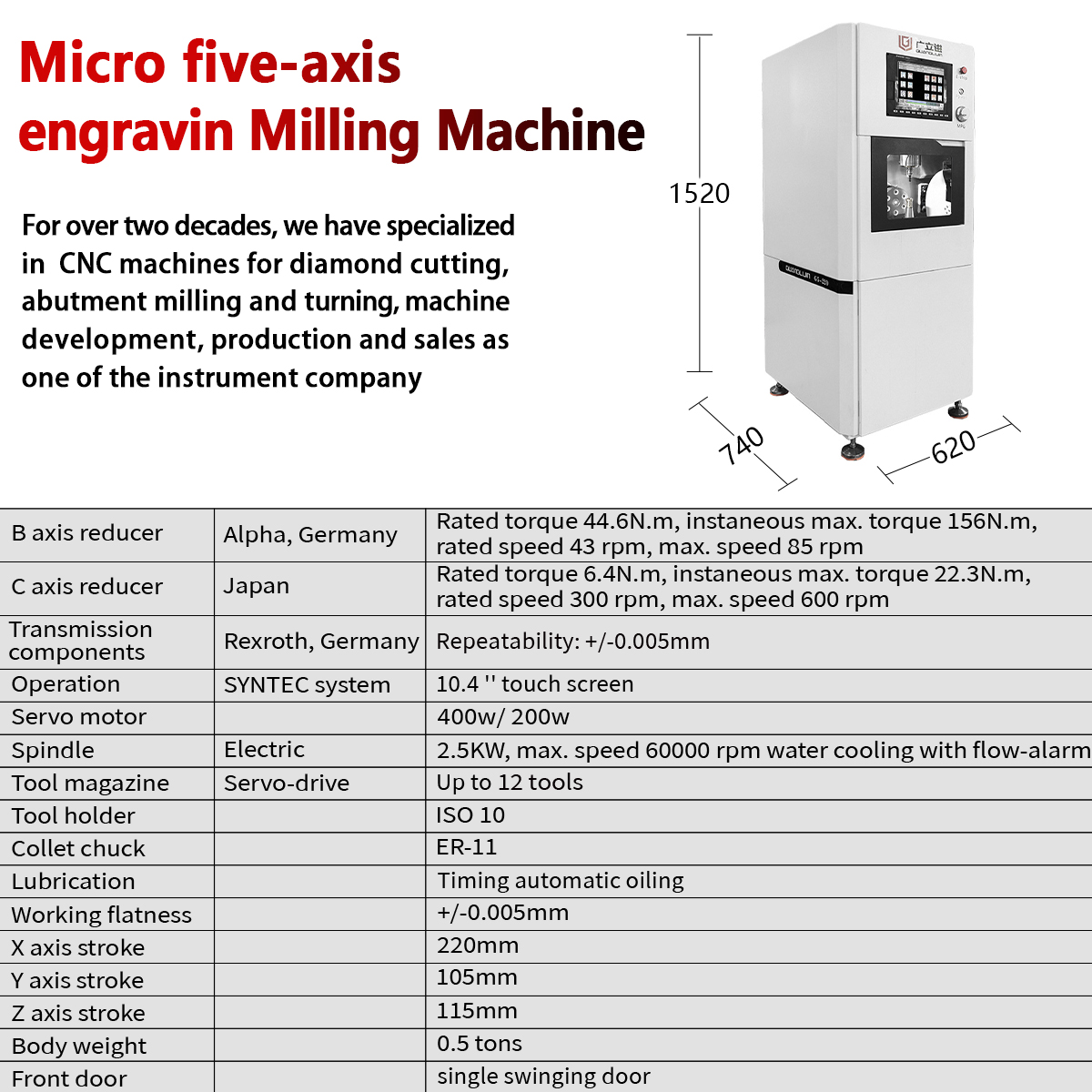

Technical Specifications

• Spindle Speed: 60,000 RPM (water-cooled)

• Positioning Accuracy: ±0.005mm

• Working Travel: X-220mm / Y-105mm / Z-115mm

• Machine Dimensions: 620×740×1520mm (W×D×H)

Applications

• Jewelry manufacturing (rings, pendants, bracelets, etc.)

• Precision components in precious metals

• Suitable for jewelry workshops, manufacturing centers, and high-end customization stores

Note: Operates on 220V/50Hz power supply. Machine weight: 500kg. Includes safety doors and automatic lubrication system.

Optional configurations available for specific processing requirements.

Technical Parameters:

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
